Hosting your own DNS, Part 1: PowerDNS Setup

All of us labbers have an insatiable itch to scratch. PowerDNS is an incredible service that allows a wide array of customisation and comes with excellent add-ons that extend that already vast feature-set. This is part one covering the basics of how to setup PowerDNS.

Adam Waring
· 12 min read
Send by email
Photo by Ian Ward / Unsplash

When building out a robust DNS infrastructure, one of the most flexible and widely used open-source options is PowerDNS. Unlike BIND, which stores its data in zone files, PowerDNS is database-driven and integrates smoothly with MySQL, PostgreSQL, or other backends. This article walks through setting up PowerDNS in authoritative mode to host your own DNS.

For me, PowerDNS provides a relatively simple but flexible service that is well-documented. Additionally, it meets some of my more niche requirements, including an API and, consequently, a web interface.

Here, we'll explore setting up PowerDNS with a MariaDB backend and discuss some of the basic configuration options you may want to consider, depending on your setup needs. MariaDB is a drop-in replacement for MySQL, which has been gaining traction over the last several years.

Personally, I run my own DNS services on PowerDNS, utilising a Primary-Secondary architecture where replication and updates are handled via AXFRs. That way, I am already using zone-based replication and can use something like the free and truly excellent NS-Global DNS Service as an off-site secondary should the need arise.

We will be looking at setting up PowerDNS on Debian 13 to act as a primary nameserver.

MariaDB Installation

  1. Next, you should ensure you have the latest package definitions by running 'apt update' before installing the required software.
sudo apt update

sudo apt install pdns-server pdns-backend-mysql mariadb-server -y
  1. Next, enable the MariaDB service and configure the instance. Ensure you create a strong root password. You should not need to allow root login outside of the server in this example, and you can remove the test accounts.
sudo systemctl enable --now mariadb

sudo mariadb-secure-installation
  1. Open the MariaDB instance by typing sudo mariadb Once the MariaDB client has initialised, enter the below, substituting values as desired.
CREATE DATABASE powerdns;

CREATE USER 'pdns'@'localhost' IDENTIFIED BY 'StrongPassword!';

GRANT ALL ON powerdns.* TO 'pdns'@'localhost';

FLUSH PRIVILEGES;
  1. As the pdns user, then load the schema that PowerDNS provides.
sudo mariadb -u pdns -p powerdns < /usr/share/pdns-backend-mysql/schema/schema.mysql.sql

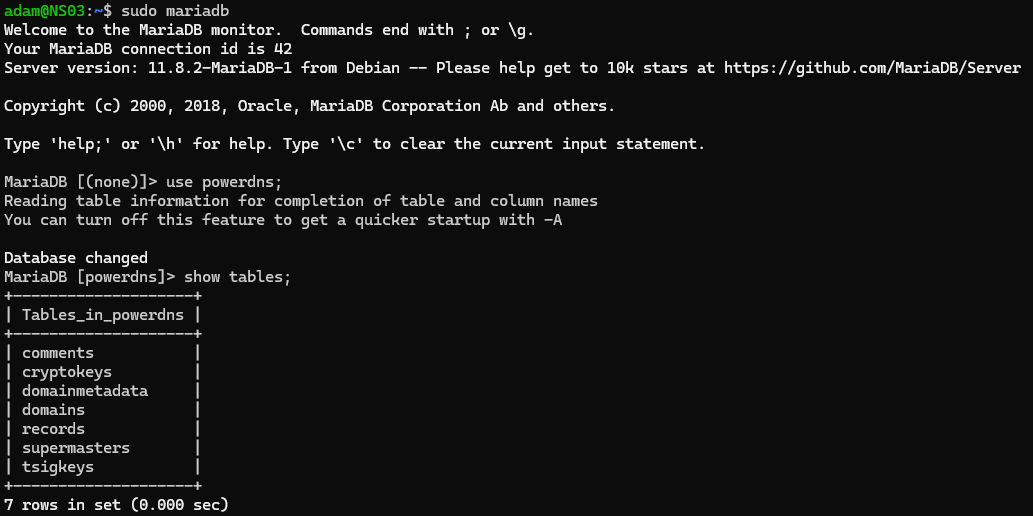

  1. Check that the schema was loaded correctly. You should get something similar to the image below after running the following commands.
sudo mariadb

use powerdns;
show tables;

PowerDNS Configuration

In principle, we should now have all the bits installed and just need to configure PowerDNS.

You may find the next step is significantly easier if you are using VSCode, as we discussed in a previous article; however, here you will need to be logged in as root.

Using VSCode to configure remote servers
I sat down to write an article on how to roll your own DNS and just thought to myself, ‘I usually do this using VSCode or one of the JetBrains IDEs, so why would I not do so now?’ So here we are... The Basics For those who already
allw.ioAdam Waring

Irrespective of how you configure it, you'll want to change the following as a minimum.

  1. The main PowerDNS config file, /etc/powerdns/pdns.conf You'll want to set it to use MySQL. This file is incredibly long so I've included an unedited version at the end of this post.
#Edit the following line
launch=gmysql

#Add the following lines
gmysql-host=127.0.0.1
gmysql-user=pdns
gmysql-password=StrongPassword!
gmysql-dbname=powerdns
  1. Restart the PowerDNS services and ensure they are set to run on boot.
sudo systemctl restart pdns
sudo systemctl enable pdns

#Check status using
sudo systemctl status pdns
  1. Add an example DNS zone to verify the setup. Like before, first enter the MariaDB CLI and use the PowerDNS schema.
INSERT INTO domains (name, type) VALUES ('example.com', 'NATIVE');

INSERT INTO records (domain_id, name, type, content, ttl, prio)
VALUES
((SELECT id FROM domains WHERE name='example.com'), 'example.com', 'SOA',
 'ns1.example.com hostmaster.example.com 1 10800 3600 604800 3600', 3600, NULL);

INSERT INTO records (domain_id, name, type, content, ttl, prio)
VALUES
((SELECT id FROM domains WHERE name='example.com'), 'example.com', 'NS',
 'ns1.example.com', 3600, NULL),
((SELECT id FROM domains WHERE name='example.com'), 'example.com', 'NS',
 'ns2.example.com', 3600, NULL),
((SELECT id FROM domains WHERE name='example.com'), 'ns1.example.com', 'A',
 '192.0.2.1', 3600, NULL),
((SELECT id FROM domains WHERE name='example.com'), 'ns2.example.com', 'A',
 '192.0.2.2', 3600, NULL),
((SELECT id FROM domains WHERE name='example.com'), 'www.example.com', 'A',
 '192.0.2.100', 3600, NULL);
  1. Query the records to prove the server is set up correctly. From the server dig @127.0.0.1 example.com NS from a Windows client nslookup -type=NS example.com RemoteServer

Whoopsie, I hit an issue not covered here

This guide is complicated and may miss some steps, so take a breath and think it through.

DNS Timeout when remote but not locally on server

Check your firewall rules. You will need Port 53, TCP & UDP to be open.

PowerDNS service failing to start

This can be caused by systemd-resolved interfering. To resolve, I found editing the /etc/resolved.conf file to have the directive DNSStubListener=no worked. You will then need to restart the service using:

sudo systemctl restart systemd-resolved

Default PowerDNS Config File

/etc/powerdns/pdns.conf

# Autogenerated configuration file template

#################################
# ignore-unknown-settings	Configuration settings to ignore if they are unknown
#
# ignore-unknown-settings=

#################################
# 8bit-dns	Allow 8bit dns queries
#
# 8bit-dns=no

#################################
# allow-axfr-ips	Allow zonetransfers only to these subnets
#
# allow-axfr-ips=127.0.0.0/8,::1

#################################
# allow-dnsupdate-from	A global setting to allow DNS updates from these IP ranges.
#
# allow-dnsupdate-from=127.0.0.0/8,::1

#################################
# allow-notify-from	Allow AXFR NOTIFY from these IP ranges. If empty, drop all incoming notifies.
#
# allow-notify-from=0.0.0.0/0,::/0

#################################
# allow-unsigned-autoprimary	Allow autoprimaries to create zones without TSIG signed NOTIFY
#
# allow-unsigned-autoprimary=yes

#################################
# allow-unsigned-notify	Allow unsigned notifications for TSIG secured zones
#
# allow-unsigned-notify=yes

#################################
# also-notify	When notifying a zone, also notify these nameservers
#
# also-notify=

#################################
# any-to-tcp	Answer ANY queries with tc=1, shunting to TCP
#
# any-to-tcp=yes

#################################
# api	Enable/disable the REST API (including HTTP listener)
#
# api=no

#################################
# api-key	Static pre-shared authentication key for access to the REST API
#
# api-key=

#################################
# autosecondary	Act as an autosecondary
#
# autosecondary=no

#################################
# axfr-fetch-timeout	Maximum time in seconds for inbound AXFR to start or be idle after starting
#
# axfr-fetch-timeout=10

#################################
# axfr-lower-serial	Also AXFR a zone from a primary with a lower serial
#
# axfr-lower-serial=no

#################################
# cache-ttl	Seconds to store packets in the PacketCache
#
# cache-ttl=20

#################################
# carbon-instance	If set overwrites the instance name default
#
# carbon-instance=auth

#################################
# carbon-interval	Number of seconds between carbon (graphite) updates
#
# carbon-interval=30

#################################
# carbon-namespace	If set overwrites the first part of the carbon string
#
# carbon-namespace=pdns

#################################
# carbon-ourname	If set, overrides our reported hostname for carbon stats
#
# carbon-ourname=

#################################
# carbon-server	If set, send metrics in carbon (graphite) format to this server IP address
#
# carbon-server=

#################################
# chroot	If set, chroot to this directory for more security
#
# chroot=

#################################
# config-dir	Location of configuration directory (pdns.conf)
#
# config-dir=/etc/powerdns

#################################
# config-name	Name of this virtual configuration - will rename the binary image
#
# config-name=

#################################
# consistent-backends	Assume individual zones are not divided over backends. Send only ANY lookup operations to the backend to reduce the number of lookups
#
# consistent-backends=yes

#################################
# control-console	Debugging switch - don't use
#
# control-console=no

#################################
# daemon	Operate as a daemon
#
# daemon=no

#################################
# default-api-rectify	Default API-RECTIFY value for zones
#
# default-api-rectify=yes

#################################
# default-catalog-zone	Catalog zone to assign newly created primary zones (via the API) to
#
# default-catalog-zone=

#################################
# default-ksk-algorithm	Default KSK algorithm
#
# default-ksk-algorithm=ecdsa256

#################################
# default-ksk-size	Default KSK size (0 means default)
#
# default-ksk-size=0

#################################
# default-publish-cdnskey	Default value for PUBLISH-CDNSKEY
#
# default-publish-cdnskey=

#################################
# default-publish-cds	Default value for PUBLISH-CDS
#
# default-publish-cds=

#################################
# default-soa-content	Default SOA content
#
# default-soa-content=a.misconfigured.dns.server.invalid hostmaster.@ 0 10800 3600 604800 3600

#################################
# default-soa-edit	Default SOA-EDIT value
#
# default-soa-edit=

#################################
# default-soa-edit-signed	Default SOA-EDIT value for signed zones
#
# default-soa-edit-signed=

#################################
# default-ttl	Seconds a result is valid if not set otherwise
#
# default-ttl=3600

#################################
# default-zsk-algorithm	Default ZSK algorithm
#
# default-zsk-algorithm=

#################################
# default-zsk-size	Default ZSK size (0 means default)
#
# default-zsk-size=0

#################################
# delay-notifications	Configure a delay to send out notifications, no delay by default
#
# delay-notifications=0

#################################
# direct-dnskey	Fetch DNSKEY, CDS and CDNSKEY RRs from backend during DNSKEY or CDS/CDNSKEY synthesis
#
# direct-dnskey=no

#################################
# disable-axfr	Disable zonetransfers but do allow TCP queries
#
# disable-axfr=no

#################################
# disable-axfr-rectify	Disable the rectify step during an outgoing AXFR. Only required for regression testing.
#
# disable-axfr-rectify=no

#################################
# disable-syslog	Disable logging to syslog, useful when running inside a supervisor that logs stdout
#
# disable-syslog=no

#################################
# distributor-threads	Default number of Distributor (backend) threads to start
#
# distributor-threads=3

#################################
# dname-processing	If we should support DNAME records
#
# dname-processing=no

#################################
# dnssec-key-cache-ttl	Seconds to cache DNSSEC keys from the database
#
# dnssec-key-cache-ttl=30

#################################
# dnsupdate	Enable/Disable DNS update (RFC2136) support. Default is no.
#
# dnsupdate=no

#################################
# domain-metadata-cache-ttl	Seconds to cache zone metadata from the database
#
# domain-metadata-cache-ttl=

#################################
# edns-cookie-secret	When set, set a server cookie when responding to a query with a Client cookie (in hex)
#
# edns-cookie-secret=

#################################
# edns-subnet-processing	If we should act on EDNS Subnet options
#
# edns-subnet-processing=no

#################################
# enable-lua-records	Process LUA records for all zones (metadata overrides this)
#
# enable-lua-records=no

#################################
# entropy-source	If set, read entropy from this file
#
# entropy-source=/dev/urandom

#################################
# expand-alias	Expand ALIAS records
#
# expand-alias=no

#################################
# forward-dnsupdate	A global setting to allow DNS update packages that are for a Secondary zone, to be forwarded to the primary.
#
# forward-dnsupdate=yes

#################################
# forward-notify	IP addresses to forward received notifications to regardless of primary or secondary settings
#
# forward-notify=

#################################
# guardian	Run within a guardian process
#
# guardian=no

#################################
# include-dir	Include *.conf files from this directory
#
# include-dir=
include-dir=/etc/powerdns/pdns.d

#################################
# launch	Which backends to launch and order to query them in
#
# launch=
launch=

#################################
# load-modules	Load this module - supply absolute or relative path
#
# load-modules=

#################################
# local-address	Local IP addresses to which we bind
#
# local-address=0.0.0.0, ::

#################################
# local-address-nonexist-fail	Fail to start if one or more of the local-address's do not exist on this server
#
# local-address-nonexist-fail=yes

#################################
# local-port	The port on which we listen
#
# local-port=53

#################################
# log-dns-details	If PDNS should log DNS non-erroneous details
#
# log-dns-details=no

#################################
# log-dns-queries	If PDNS should log all incoming DNS queries
#
# log-dns-queries=no

#################################
# log-timestamp	Print timestamps in log lines
#
# log-timestamp=yes

#################################
# logging-facility	Log under a specific facility
#
# logging-facility=

#################################
# loglevel	Amount of logging. Higher is more. Do not set below 3
#
# loglevel=4

#################################
# loglevel-show	Include log level indicator in log output
#
# loglevel-show=no

#################################
# lua-axfr-script	Script to be used to edit incoming AXFRs
#
# lua-axfr-script=

#################################
# lua-consistent-hashes-cleanup-interval	Pre-computed hashes cleanup interval (in seconds)
#
# lua-consistent-hashes-cleanup-interval=3600

#################################
# lua-consistent-hashes-expire-delay	Cleanup pre-computed hashes that haven't been used for the given delay (in seconds). See pickchashed() LUA function
#
# lua-consistent-hashes-expire-delay=86400

#################################
# lua-dnsupdate-policy-script	Lua script with DNS update policy handler
#
# lua-dnsupdate-policy-script=

#################################
# lua-health-checks-expire-delay	Stops doing health checks after the record hasn't been used for that delay (in seconds)
#
# lua-health-checks-expire-delay=3600

#################################
# lua-health-checks-interval	LUA records health checks monitoring interval in seconds
#
# lua-health-checks-interval=5

#################################
# lua-prequery-script	Lua script with prequery handler (DO NOT USE)
#
# lua-prequery-script=

#################################
# lua-records-exec-limit	LUA records scripts execution limit (instructions count). Values <= 0 mean no limit
#
# lua-records-exec-limit=1000

#################################
# lua-records-insert-whitespace	Insert whitespace when combining LUA chunks
#
# lua-records-insert-whitespace=yes

#################################
# max-cache-entries	Maximum number of entries in the query cache
#
# max-cache-entries=1000000

#################################
# max-ent-entries	Maximum number of empty non-terminals in a zone
#
# max-ent-entries=100000

#################################
# max-generate-steps	Maximum number of $GENERATE steps when loading a zone from a file
#
# max-generate-steps=0

#################################
# max-include-depth	Maximum number of nested $INCLUDE directives while processing a zone file
#
# max-include-depth=20

#################################
# max-nsec3-iterations	Limit the number of NSEC3 hash iterations
#
# max-nsec3-iterations=100

#################################
# max-packet-cache-entries	Maximum number of entries in the packet cache
#
# max-packet-cache-entries=1000000

#################################
# max-queue-length	Maximum queuelength before considering situation lost
#
# max-queue-length=5000

#################################
# max-signature-cache-entries	Maximum number of signatures cache entries
#
# max-signature-cache-entries=

#################################
# max-tcp-connection-duration	Maximum time in seconds that a TCP DNS connection is allowed to stay open.
#
# max-tcp-connection-duration=0

#################################
# max-tcp-connections	Maximum number of TCP connections
#
# max-tcp-connections=20

#################################
# max-tcp-connections-per-client	Maximum number of simultaneous TCP connections per client
#
# max-tcp-connections-per-client=0

#################################
# max-tcp-transactions-per-conn	Maximum number of subsequent queries per TCP connection
#
# max-tcp-transactions-per-conn=0

#################################
# module-dir	Default directory for modules
#


#################################
# negquery-cache-ttl	Seconds to store negative query results in the QueryCache
#
# negquery-cache-ttl=60

#################################
# no-shuffle	Set this to prevent random shuffling of answers - for regression testing
#
# no-shuffle=off

#################################
# non-local-bind	Enable binding to non-local addresses by using FREEBIND / BINDANY socket options
#
# non-local-bind=no

#################################
# only-notify	Only send AXFR NOTIFY to these IP addresses or netmasks
#
# only-notify=0.0.0.0/0,::/0

#################################
# outgoing-axfr-expand-alias	Expand ALIAS records during outgoing AXFR
#
# outgoing-axfr-expand-alias=no

#################################
# overload-queue-length	Maximum queuelength moving to packetcache only
#
# overload-queue-length=0

#################################
# prevent-self-notification	Don't send notifications to what we think is ourself
#
# prevent-self-notification=yes

#################################
# primary	Act as a primary
#
# primary=no

#################################
# proxy-protocol-from	A Proxy Protocol header is only allowed from these subnets, and is mandatory then too.
#
# proxy-protocol-from=

#################################
# proxy-protocol-maximum-size	The maximum size of a proxy protocol payload, including the TLV values
#
# proxy-protocol-maximum-size=512

#################################
# query-cache-ttl	Seconds to store query results in the QueryCache
#
# query-cache-ttl=20

#################################
# query-local-address	Source IP addresses for sending queries
#
# query-local-address=0.0.0.0 ::

#################################
# query-logging	Hint backends that queries should be logged
#
# query-logging=no

#################################
# queue-limit	Maximum number of milliseconds to queue a query
#
# queue-limit=1500

#################################
# receiver-threads	Default number of receiver threads to start
#
# receiver-threads=1

#################################
# resolver	Use this resolver for ALIAS and the internal stub resolver
#
# resolver=no

#################################
# retrieval-threads	Number of AXFR-retrieval threads for secondary operation
#
# retrieval-threads=2

#################################
# reuseport	Enable higher performance on compliant kernels by using SO_REUSEPORT allowing each receiver thread to open its own socket
#
# reuseport=no

#################################
# rng	Specify the random number generator to use. Valid values are auto,sodium,openssl,getrandom,arc4random,urandom.
#
# rng=auto

#################################
# secondary	Act as a secondary
#
# secondary=no

#################################
# secondary-check-signature-freshness	Check signatures in SOA freshness check. Sets DO flag on SOA queries. Outside some very problematic scenarios, say yes here.
#
# secondary-check-signature-freshness=yes

#################################
# secondary-do-renotify	If this secondary should send out notifications after receiving zone transfers from a primary
#
# secondary-do-renotify=no

#################################
# security-poll-suffix	Zone name from which to query security update notifications
#
# security-poll-suffix=secpoll.powerdns.com.
security-poll-suffix=

#################################
# send-signed-notify	Send TSIG secured NOTIFY if TSIG key is configured for a zone
#
# send-signed-notify=yes

#################################
# server-id	Returned when queried for 'id.server' TXT or NSID, defaults to hostname - disabled or custom
#
# server-id=

#################################
# setgid	If set, change group id to this gid for more security
#
# setgid=

#################################
# setuid	If set, change user id to this uid for more security
#
# setuid=

#################################
# signing-threads	Default number of signer threads to start
#
# signing-threads=3

#################################
# socket-dir	Where the controlsocket will live, /var/run/pdns when unset and not chrooted. Set to the RUNTIME_DIRECTORY environment variable when that variable has a value (e.g. under systemd).
#
# socket-dir=

#################################
# svc-autohints	Transparently fill ipv6hint=auto ipv4hint=auto SVC params with AAAA/A records for the target name of the record (if within the same zone)
#
# svc-autohints=no

#################################
# tcp-control-address	If set, PowerDNS can be controlled over TCP on this address
#
# tcp-control-address=

#################################
# tcp-control-port	If set, PowerDNS can be controlled over TCP on this address
#
# tcp-control-port=53000

#################################
# tcp-control-range	If set, remote control of PowerDNS is possible over these networks only
#
# tcp-control-range=127.0.0.0/8, 10.0.0.0/8, 192.168.0.0/16, 172.16.0.0/12, ::1/128, fe80::/10

#################################
# tcp-control-secret	If set, PowerDNS can be controlled over TCP after passing this secret
#
# tcp-control-secret=

#################################
# tcp-fast-open	Enable TCP Fast Open support on the listening sockets, using the supplied numerical value as the queue size
#
# tcp-fast-open=0

#################################
# tcp-idle-timeout	Maximum time in seconds that a TCP DNS connection is allowed to stay open while being idle
#
# tcp-idle-timeout=5

#################################
# traceback-handler	Enable the traceback handler (Linux only)
#
# traceback-handler=yes

#################################
# trusted-notification-proxy	IP address of incoming notification proxy
#
# trusted-notification-proxy=

#################################
# udp-truncation-threshold	Maximum UDP response size before we truncate
#
# udp-truncation-threshold=1232

#################################
# upgrade-unknown-types	Transparently upgrade known TYPExxx records. Recommended to keep off, except for PowerDNS upgrades until data sources are cleaned up
#
# upgrade-unknown-types=no

#################################
# version-string	PowerDNS version in packets - full, anonymous, powerdns or custom
#
# version-string=full

#################################
# webserver	Start a webserver for monitoring (api=yes also enables the HTTP listener)
#
# webserver=no

#################################
# webserver-address	IP Address of webserver/API to listen on
#
# webserver-address=127.0.0.1

#################################
# webserver-allow-from	Webserver/API access is only allowed from these subnets
#
# webserver-allow-from=127.0.0.1,::1

#################################
# webserver-connection-timeout	Webserver/API request/response timeout in seconds
#
# webserver-connection-timeout=5

#################################
# webserver-hash-plaintext-credentials	Whether to hash passwords and api keys supplied in plaintext, to prevent keeping the plaintext version in memory at runtime
#
# webserver-hash-plaintext-credentials=no

#################################
# webserver-loglevel	Amount of logging in the webserver (none, normal, detailed)
#
# webserver-loglevel=normal

#################################
# webserver-max-bodysize	Webserver/API maximum request/response body size in megabytes
#
# webserver-max-bodysize=2

#################################
# webserver-password	Password required for accessing the webserver
#
# webserver-password=

#################################
# webserver-port	Port of webserver/API to listen on
#
# webserver-port=8081

#################################
# webserver-print-arguments	If the webserver should print arguments
#
# webserver-print-arguments=no

#################################
# workaround-11804	Workaround for issue 11804: send single RR per AXFR chunk
#
# workaround-11804=no

#################################
# write-pid	Write a PID file
#
# write-pid=yes

#################################
# xfr-cycle-interval	Schedule primary/secondary SOA freshness checks once every .. seconds
#
# xfr-cycle-interval=60

#################################
# xfr-max-received-mbytes	Maximum number of megabytes received from an incoming XFR
#
# xfr-max-received-mbytes=100

#################################
# zone-cache-refresh-interval	Seconds to cache list of known zones
#
# zone-cache-refresh-interval=300

#################################
# zone-metadata-cache-ttl	Seconds to cache zone metadata from the database
#
# zone-metadata-cache-ttl=60

Written by Adam Waring

Born far too long ago into a world (largely) pre-internet as we know it. Grew up around tech and seen everything go from on-premises to cloud, will it go back? Needless to say, I have opinions, and I will share. A fan of talking about many things.

Keep reading
